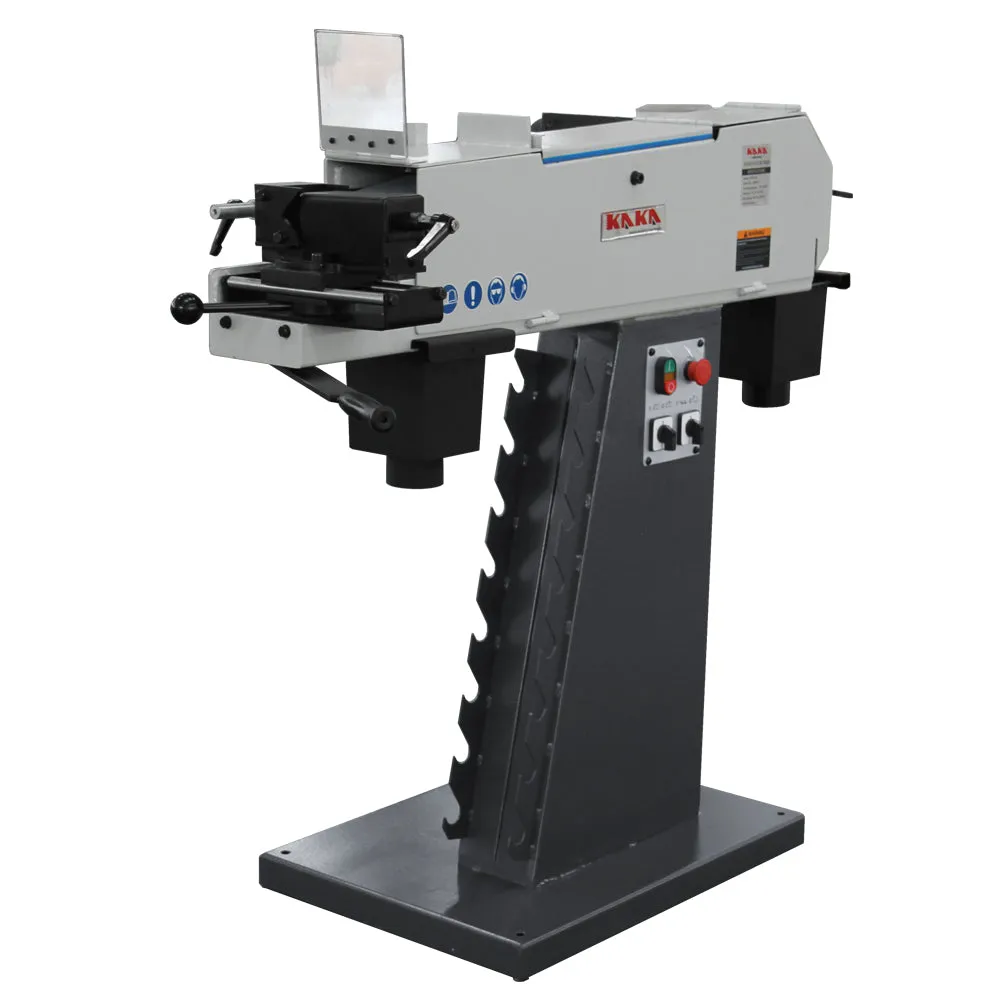

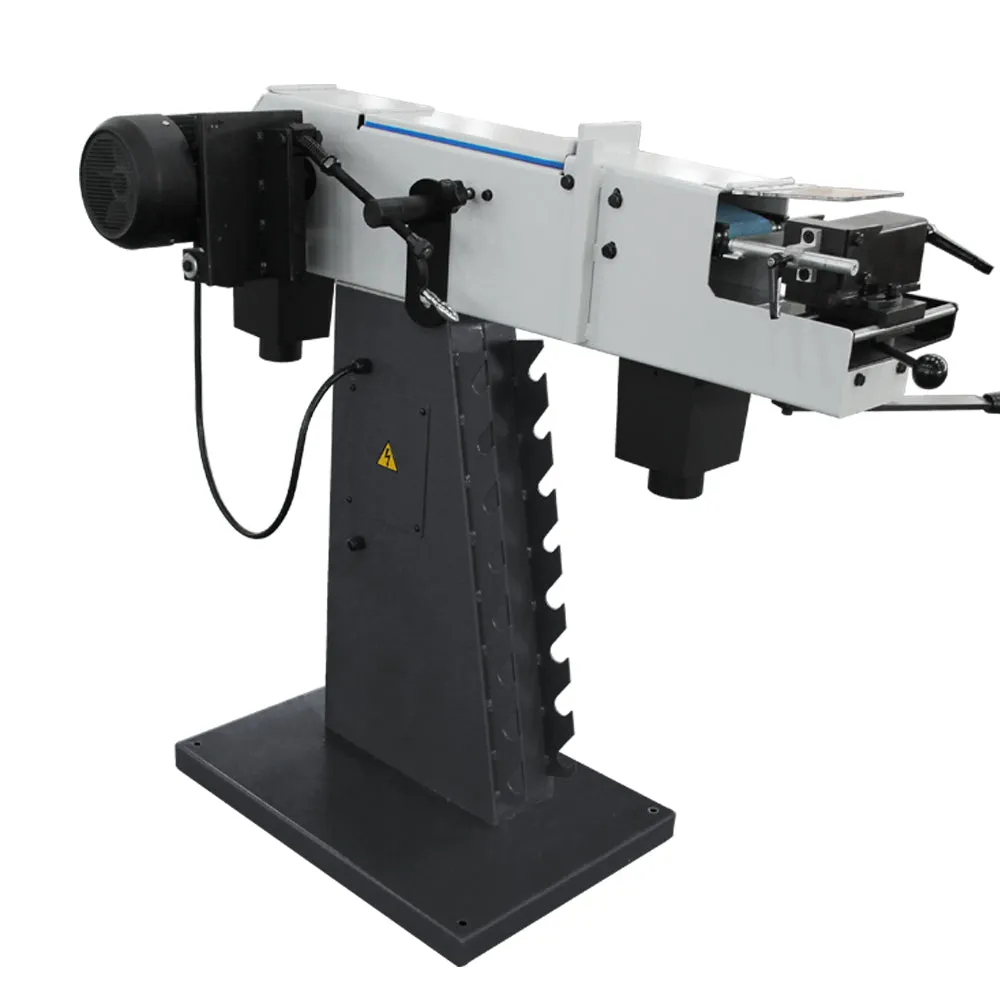

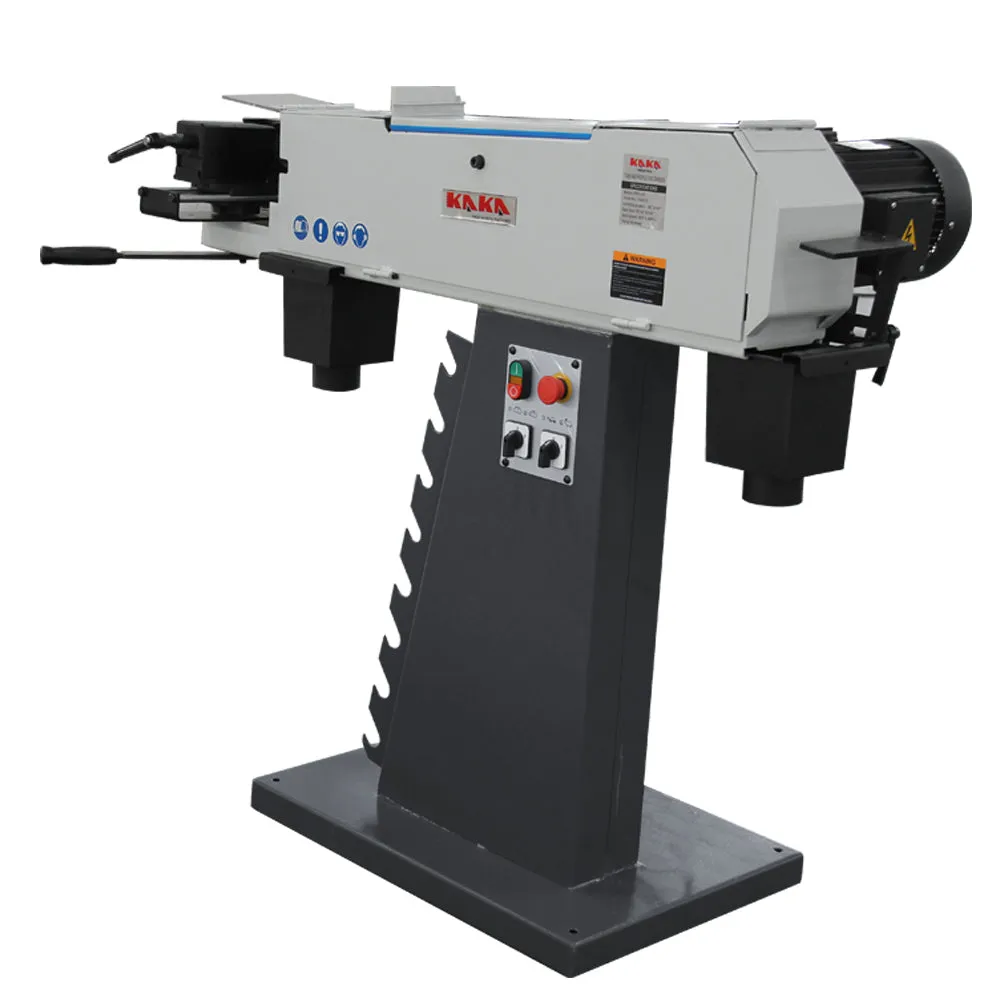

PRS-4A Belt Grinder Features
1. Steady Tri-angle stand with 8-position roller holder
2. Two optional speeds fulfill different requirements.
3. Standard roller: dia. 28mm
4. Our tube and profile end grinder is especially suitable for burnishing various pipe materials and special-shaped parts.
5. The clamp mouth of tube and profile end grinder features multi-angle rotational positioning

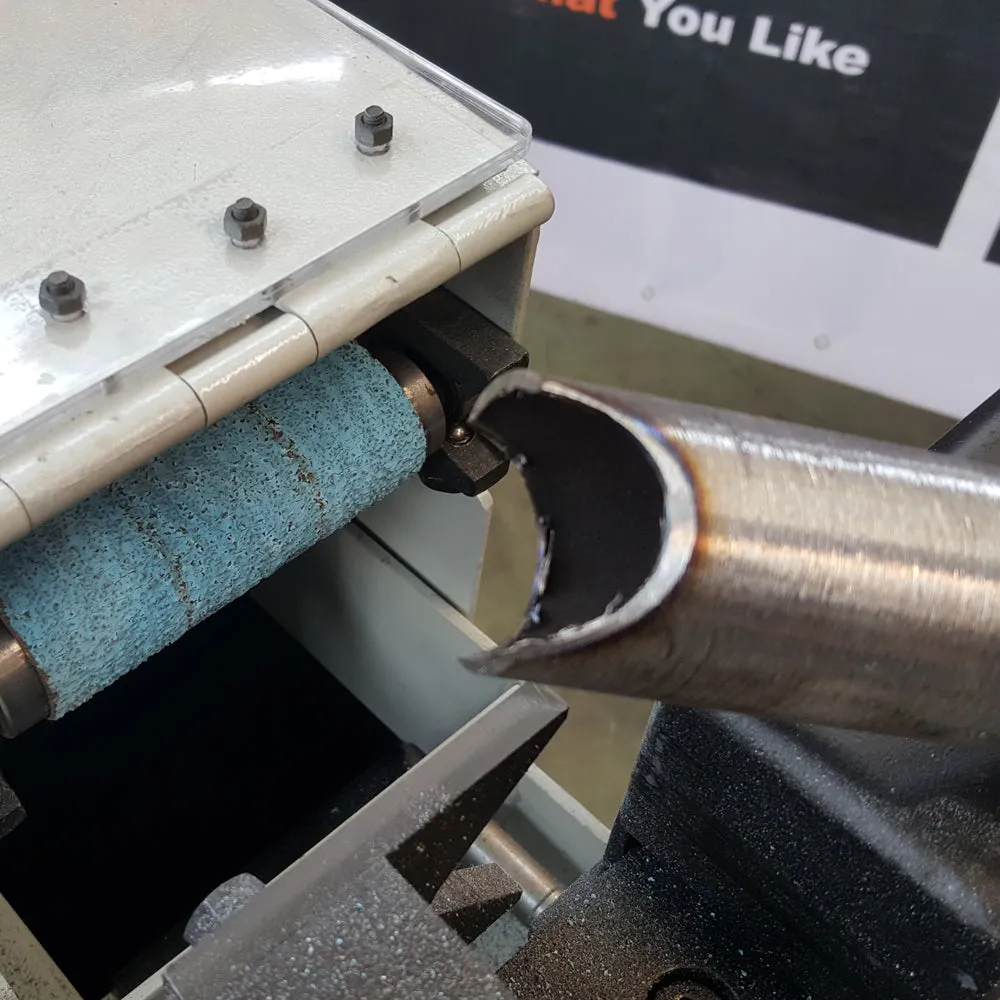

6. Grinds at any angle from 30 to 90 degree, any diameter from 20-76 mm
7. It has the advantage of arc cutting, which is ideal for pipe-shaped parts
8. It has many optional dies of various specifications suitable for arc cutting different-diameter pipe materials.
|
Item No. |
189013 |
|
Model |
PRS-4A |
|
Motor power |
2.2/2.8kW |
|
Adjustable slide |
6.2x2.7 in |
|
Grinding ares |
30°to 90° |
|
Speed |
2800rpm |
|
Belt size |
3.9x78.7 in |
|
Belt speed |
15m/sec, 30m/sec |
|
Packing size |
54x24x26 in |
|
N.W/G.W. |
375/458lbs |
Optional rollers:
